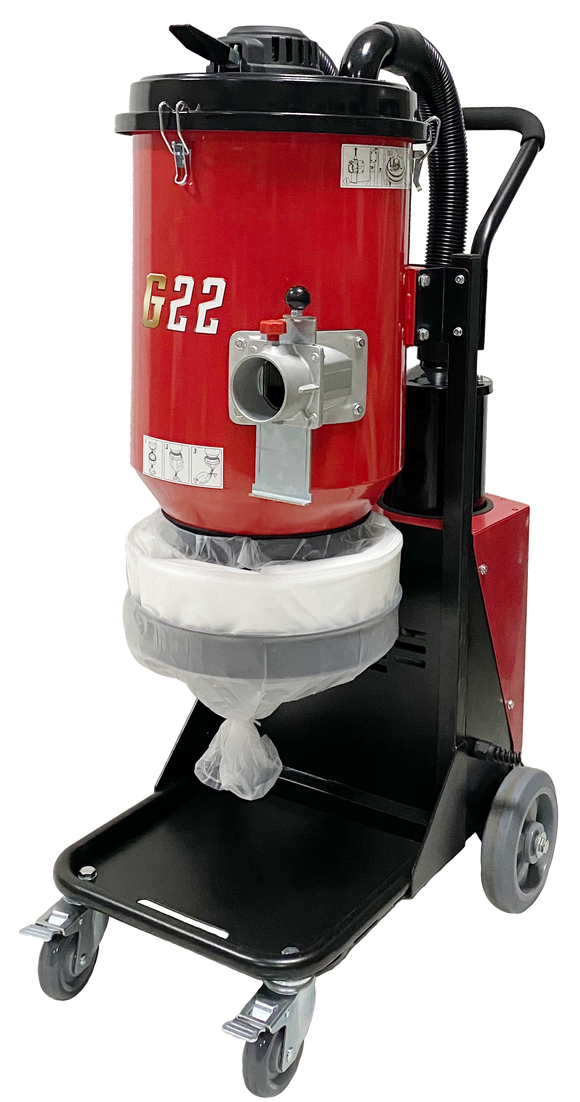

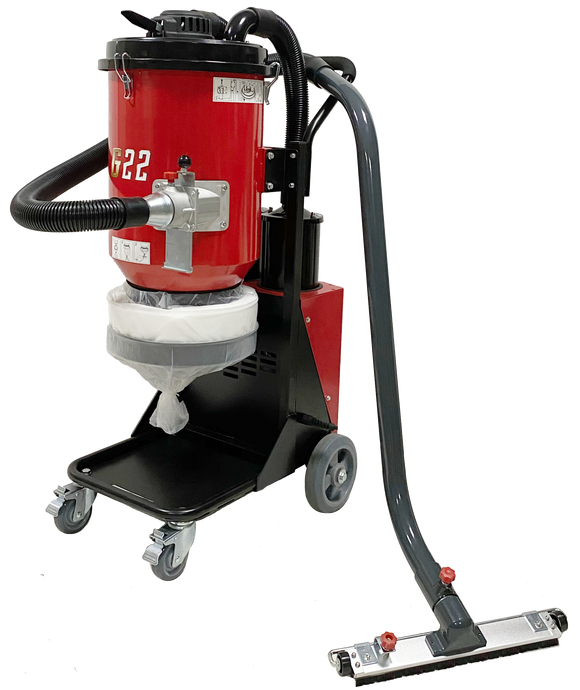

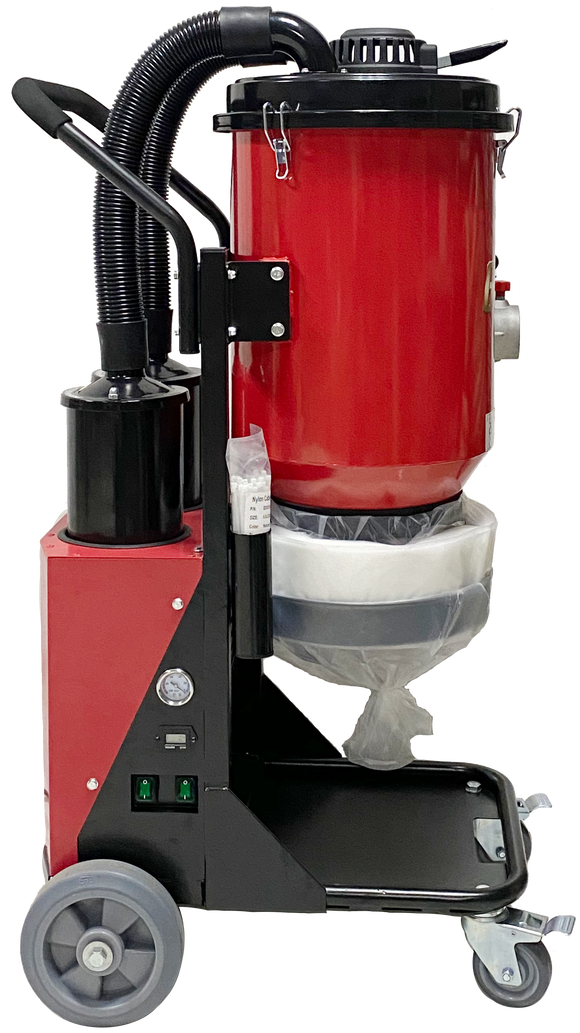

Vantage Red Vacuum VFG-G22
Single Phase 110V/60Hz / Power: 2.4kw ..224CFM at 2" air intake / 247CFM at 3" air intake / Max Vacuum: 86" H2O
VFG-G22 Dust Extractors are designed to clean construction areas and be connected to small and medium machines such as drills, grinders etc. The machine is designed for vacuuming and separating dry, non-combustible dust with an explosion limit value of 0.1mg/m3.
The machine is suitable for picking up dry, non-flammable dust and debris in and indoor environment. It is not suitable for picking up
liquids.
Data Unit VFG-G22
Voltage V 110-120V
Power（max） KW 2.4
HP 3.2
Current(UL) A 16
Airflow(max) m³/h 400
cfm 256
Vacuum(Max) mbar 220
Water lift(inch) inch 100
Main hose Metric(mm) 7.5mxD50
USCS(inch) 24’X2’’
Inlet Metric (mm) 70
USCS (inch) 2.8"
Pre filter
EN 779-F8 % @1μm 99.5
Pre filter area Metric (m2) 3
USCS (ft2) 32
HEPA filter
EN1833-H13 % @0.3μm 99.99
H13 HEPA
filter area Metric (m2) 2.4
USCS (ft2) 26
Dust collection
system Type Continuous folding bag
Dimensions Metric (mm) 570x710x1300
（L*W*H） USCS (inch) 22.4x28x51.2
Weight Metric(kg) 48
USCS (Ibs) 105
